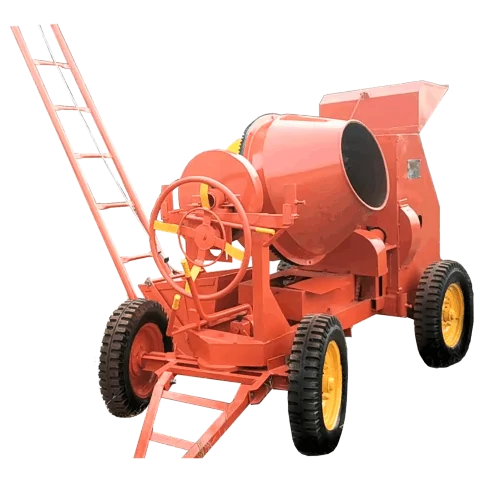

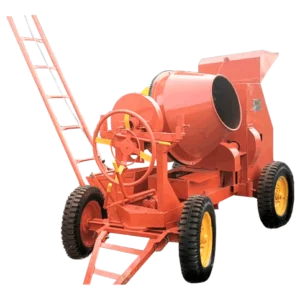

Roof Concrete mixer 3/4 Bag

Roof Concrete mixer 3/4 Bag

7/5 Cft Concrete mixer machine with 45 ft attached ladder lift for roof concrete with a Diesel engine.

₹
259000.00
Aprox

  • Note : GST 18 % Extra


Get Latest Price
Order Now
Product Info
Specification
gallery
Product Info

Model : ARCWRCH7/5

Type : Roof Concrete mixer machine Without self loading hopper, Portable 7/5 Cft

Price : 2,59,000 + GST (approx)

Specification

Output Capacity

5 cft

Type Of Drum

Tilting Drum

Power

Electrical or Diesel

Number Of Wheels

4

Diesel Engine Power

10 HP

Electric Motor Power

3 HP

Unmixed Capacity

7 cft

Cement capacity

3/4 Bag

Max Drum Speed

20 rpm

Wheel tyre type

Ambassador re-belt tube tyre

-Drum material

Cast Iron

Cone Material

Mild steel

Cone Thickness

6 MM

Diesel Engine brand

Kirlosakar

colour

Green, Grey, Black

gallery

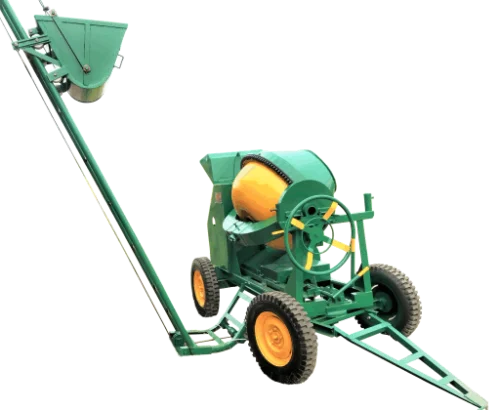

About Concrete mixer machine with Lift​

     ARC’s 7/5 Cft concrete mixer machine with a 45 ft attached ladder lift is specialized equipment for mixing and pouring concrete at elevated heights, such as on roofs or high-rise buildings. The “7/5 Cft” refers to the mixer drum capacity, which can hold seven cubic feet of concrete when fully loaded, and has a mixing capacity of 5 cubic feet.
     The attached ladder lift allows workers to transport the mixed concrete from the ground level to the elevated location without needing a separate crane or other lifting equipment. The 45 ft height of the lift means that the machine can use for pouring concrete on roofs or other high areas.
       The concrete mixer machine is powered by a diesel engine, which provides the necessary power to rotate the mixer drum and operate the attached ladder lift. Diesel engines are preferred for their durability and efficiency and are often used in heavy-duty construction equipment.
Overall, a 7/5 Cft Roof concrete mixer machine with a 45 ft attached ladder lift and a diesel engine is highly specialized equipment for pouring concrete at elevated heights. It can increase efficiency and safety on construction sites by allowing workers to mix and transport concrete to the desired location without additional equipment.
